Hardware

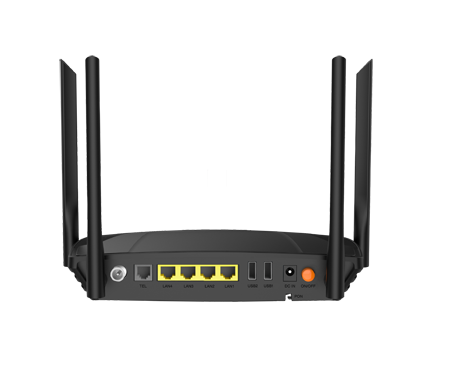

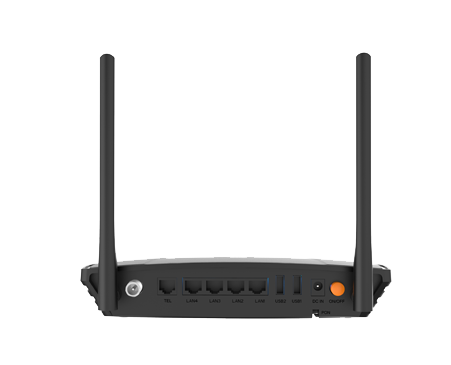

Interfaces

1 SC / UPC connector G / EPON

1* 10 / 100 / 1000M Ethernet ports(RJ45)+3* 10 / 100M Ethernet ports(RJ45)1 telephone port

2 USB2.0 ports

Buttons

Power On/Off

Reset

Wi-Fi On/Off

LEDs

PWR,PON,LOS,NET,LAN1,LAN2,LAN3,LAN4,TEL,2.4G,2.5G,CATV

Antenna

2 external antennas (5dB)

VoIP

SIP (RFC3261)

Codec: G.711 (μ-law and A-law), G.729, G.722

RTP/RTCP(RFC 1890)

Echo cancellation

VAD/CNG

DTMF

T.30/T.38 FAX

Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference

Wi-Fi

Frequency: 2.4 GHz, 5GHz

IEEE 802.11a/n/ac Wi-Fi @ 5GHz

IEEE 802.11b/g/n Wi-Fi @ 2.4GHz

WPA/WPA2 Security

Up to four broadcast/hidden SSIDs for each band

Up to 1200Mbps

USB

USB2.0 port (2)

Mobile phone power supply

USB backup / restore configuration

3G / LTE adapter

PON port

Uplink and downlink 1.25/2.544 Gbps transmission rate

Network coverage radius: 20km

Optical interface type: SC / UPC

Receiving sensitivity: ≤ - 27dBm

Transmission optical power: 0 ~ 4dbm

Security: ONU authentication mechanism

VLAN

Support 64 VLANs (1 ~ 4094)

port VLAN

IEEE 802.1Q VLAN

Support CTC 2.1 / 3.0 to define VLAN

Software

Networking

IPv4/IPv6 Dual Stack

SNTP client

NAT/ALG

Static routing/Dynamic routing

PPPoE client/passthrough

DNS client/relay

DHCP client/server

IGMP and MLD snooping/proxy

QoS

Flexible packet classification

Up to eight queues

SP/WRR/SP+WRR

Ingress rate limit

Egress shaping

WMM(Wi-Fi Multi Media)

Security

Based on uni port, VLAN ID, 802.1p, uni + 802.1p or VLAN + 802.1p

Denial of service attack defense

Multiple VPN (IPSec, PPTP) pass through

MAC address filtering

Broadcast / unicast / multicast attack defense

Broadcast packet rate limit

Dual impression for automatic firmware rollback

Support port MAC address limit

Support port protection

Support data encryption

Support status detection and fault reporting

Support power lightning protection

Management

TR-069/OMCI remote management

WEB GUI management

Local built-in diagnostic function

Logs and statistics

Remote upgrade by HTTP

Multicast

Support IGMP snooping

Support CTC to define dynamic multicast function

Support MLD snooping

Follow standards

IEEE802.3ah

Communication industry standard of the people\\\\'s Republic of China (YD / T 1475-2006)

IEEE 802.1D, Spanning Tree

IEEE 802.1Q, VLAN

IEEE 802.1w, RSTP

CATV

Wavelength

1550 ±10nm

Optical return loss

> 45dB

Working Optical Power

-8 ~ +2dBm

RF Bandwidth

47MHz ~ 875 MHz

Flatness

< 3dBm

RF Output Power

77 ±2dBuv

CNR

> 52dB

CTB

> 60dB

CSO

> 60dB

RF Return Loss

>16dB

RF Output Impedance

 75Ω

Others

Physical characteristics

Size: 220 * 170 * 40 mm (L * w * h)

Net weight: 0.335KG

Electrical Characteristics

Power input: 12V / 1A

Power consumption: < 6W

Environmental

Characteristics

Operating temperature: - 5 ~ 55 ℃

Storage temperature: - 40 °～70 °

Heat dissipation

When used for a long time (24 x 7), the heating of the equipment will not cause performance degradation and device deformation and damage

Ordering Information

Product model

Description

GPB640CA

XPON ONU 4GE+1TEL+2USB+WIFI(2.4G&5G)+CATV

GPB650CA

XPON ONU 1GE+3FE+1TEL+2USB+WIFI(2.4G&5G)+CATV
