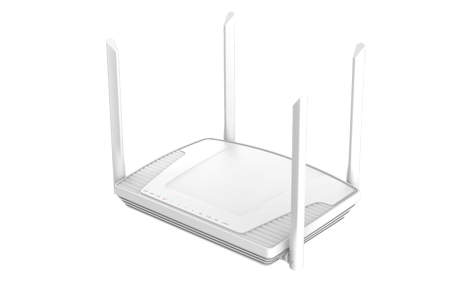

4GE+1TEL+WIFI 6 (2.4G&5G)+CATV
Category: CATV ONU
Model:GPX6C
Spec: 4GE+1TEL+WIFI 6(2.4G&5G)+CATV
(compatible EPON/GPON)
Consult Now
  • Hardware Specifications
  • Software Specifications
  • Specifications
    • Hardware

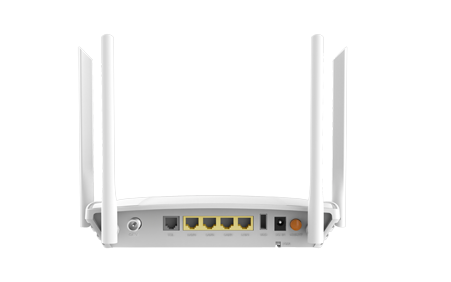

      Interfaces

      1 SC / APC connector compatible EPON/GPON

      4 Ethernet ports (4 * 10 / 100 / 1000m) adaptive port (RJ45))

      2*RJ11 telephone port

      1 USB3.0 ports

      Buttons

      Power On/Off

      Reset

      Wi-Fi On/Off

      CATV

      LEDs

      PWR,PON,LOS,NET,LAN1,LAN2,LAN3,LAN4,TEL,2.4G,5G,CATV

      Antenna

      4(or 2) external antennas (7dB)

      VoIP

      SIP (RFC3261)

      Codec: G.711 (μ-law and A-law), G.729, G.722

      RTP/RTCP(RFC 1890)

      Echo cancellation

      VAD/CNG

      DTMF

      T.30/T.38 FAX

      Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference

      Wi-Fi 6

      WiFi 6 (802.11ax) dual band WiFi

      Frequency: 2.4 GHz, 5GHz

      EasyMesh support

      Up to 2100Mbps

      IEEE 802.11a/n/ac/ax Wi-Fi @5GHz 2 x 2,MU-MIMO

      IEEE 802.11b/g/n Wi-Fi @2.4GHz 2 x 2,MU-MIMO

      WPA/WPA2/ WPA3 Security

      Up to four broadcast/hidden SSIDs for each band

      USB

      1*USB3.0 port

      PON port

      Downlink and Uplink transmission rate:

      1)1.25Gbps/1.25Gbps (EPON)

      2)2.5Gbps/2.5Gbps (GPON)

      Network coverage radius: 20km

      Optical interface type: SC/APC

      Receiving sensitivity: ≤ - 28dBm

      Transmission optical power: 0~ 4dbm

      Security: ONU authentication mechanism

      VLAN

      Support 256 VLANs (1 ~ 4094)

      port VLAN

      IEEE 802.1Q VLAN


      Software

      Networking

      IPv4/IPv6 Dual Stack

      SNTP client

      NAT/ALG

      Static routing/Dynamic routing

      PPPoE client/passthrough

      DNS client/relay

      DHCP client/server

      IGMP and MLD snooping/proxy

      QoS

      Flexible packet classification

      Up to eight queues

      SP/WRR/SP+WRR

      Ingress rate limit

      Egress shaping

      WMM(Wi-Fi Multi Media)

      Security

      Based on uni port, VLAN ID, 802.1p, uni + 802.1p or VLAN + 802.1p

      Denial of service attack defense

      Multiple VPN (IPSec, PPTP) pass through

      MAC address filtering

      Broadcast / unicast / multicast attack defense

      Broadcast packet rate limit

      Dual impression for automatic firmware rollback

      Support port MAC address limit

      Support port protection

      Support data encryption

      Support status detection and fault reporting

      Support power lightning protection

      Management

      TR-069/OMCI/OAM remote management

      WEB GUI management

      Local built-in diagnostic function

      Logs and statistics

      Remote upgrade by HTTP

      Multicast

      Support IGMP snooping

      Support CTC to define dynamic multicast function

      Support MLD snooping


      CATV

      Wavelength

      1550 ±10nm

      Optical return loss

      > 45dB

      Working Optical Power

      -8 ~ +2dBm

      RF Bandwidth

      47MHz ~ 875 MHz

      Flatness

      < 3dBm

      RF Output Power

      77 ±2dBuv

      CNR

      > 52dB

      CTB

      > 60dB

      CSO

      > 60dB

      RF Return Loss

      >16dB

      RF Output Impedance

       75Ω

      Others

      Physical characteristics

      Size: 220 * 170 * 40 mm (L * w * h)

      Net weight: 0.335KG

      Electrical Characteristics

      Power input: 12V / 1A

      Power consumption: < 9W

      Environmental

      Characteristics

      Operating temperature: - 5 ~ 55 ℃

      Storage temperature: - 40 °~70 °

      Heat dissipation

      When used for a long time (24 x 7), the heating of the equipment will not cause performance degradation and device deformation and damage

      Ordering Information

      Product model

      Description

      GPX6C

      4GE+1TEL+WIFI6(2.4G&5G)+CATV
