Hardware

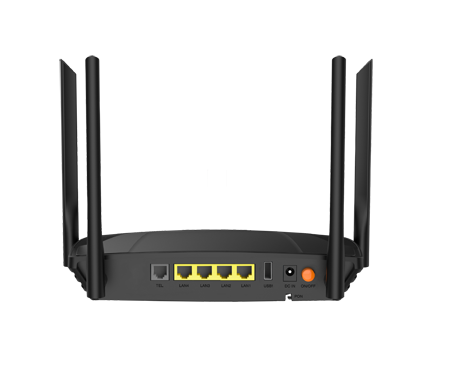

Interfaces

1 SC / APC connector compatible EPON/GPON

4 Ethernet ports (4 * 10 / 100 / 1000m) adaptive port (RJ45)）

2*RJ11 telephone port

1 USB3.0 ports

Buttons

Power On/Off

Reset

Wi-Fi On/Off

WPS

LEDs

PWR,PON,LOS,NET,LAN1,LAN2,LAN3,LAN4,TEL,2.4G,5G,WPS

Antenna

4(or 2) external antennas (7dB)

VoIP

SIP (RFC3261)

Codec: G.711 (μ-law and A-law), G.729, G.722

RTP/RTCP(RFC 1890)

Echo cancellation

VAD/CNG

DTMF

T.30/T.38 FAX

Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference

Wi-Fi 6

WiFi 6 (802.11ax) dual band WiFi

Frequency: 2.4 GHz, 5GHz

EasyMesh support

Up to 2100Mbps

IEEE 802.11a/n/ac/ax Wi-Fi @5GHz 2 x 2，MU-MIMO

IEEE 802.11b/g/n Wi-Fi @2.4GHz 2 x 2，MU-MIMO

WPA/WPA2/ WPA3 Security

Up to four broadcast/hidden SSIDs for each band

USB

1*USB3.0 port

PON port

Downlink and Uplink transmission rate:

1)1.25Gbps/1.25Gbps (EPON)

2)2.5Gbps/2.5Gbps (GPON)

Network coverage radius: 20km

Optical interface type: SC/APC

Receiving sensitivity: ≤ - 28dBm

Transmission optical power: 0~ 4dbm

Security: ONU authentication mechanism

VLAN

Support 256 VLANs (1 ~ 4094)

port VLAN

IEEE 802.1Q VLAN

Software

Networking

IPv4/IPv6 Dual Stack

SNTP client

NAT/ALG

Static routing/Dynamic routing

PPPoE client/passthrough

DNS client/relay

DHCP client/server

IGMP and MLD snooping/proxy

QoS

Flexible packet classification

Up to eight queues

SP/WRR/SP+WRR

Ingress rate limit

Egress shaping

WMM(Wi-Fi Multi Media)

Security

Based on uni port, VLAN ID, 802.1p, uni + 802.1p or VLAN + 802.1p

Denial of service attack defense

Multiple VPN (IPSec, PPTP) pass through

MAC address filtering

Broadcast / unicast / multicast attack defense

Broadcast packet rate limit

Dual impression for automatic firmware rollback

Support port MAC address limit

Support port protection

Support data encryption

Support status detection and fault reporting

Support power lightning protection

Management

TR-069/OMCI/OAM remote management

WEB GUI management

Local built-in diagnostic function

Logs and statistics

Remote upgrade by HTTP

Multicast

Support IGMP snooping

Support CTC to define dynamic multicast function

Support MLD snooping
