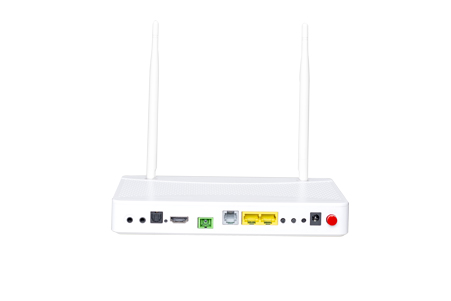

• TPB2100
  • TPB2100
  • TPB2100
Category: CATV ONU
Ethernet Interface:10/100/1000M Base-T port (RJ45) *1, 10/100M Base-T port (RJ45) *1
POTS Interface:4-core phone port (RJ11) *1
Consult Now
  • Description
  • Features
  • Specifications

      Main Features

      OTT part:

      1、 Hardware 3D graphics acceleration

      2、 Win8-styled launcher, OOBE, Browser, PlayStore, Online Live &VOD

      3、 HDMI 2.0 up to 4K with CEC HDCP 1.4/2.2

      4、 Support 3.5mm CVBS/R/L Jack-to-RCA, audio SPDIF optical

      5、 Good support to HTML5,HTTP HLS(VBR),DLNA/Miracast/Wi-Fi Direct

      6、 Support sufficient media format, music format and picture format

      7、 2 High Speed USB 2.0, one is host and the other is OTG

      8、 High speed SD(TF) storage card

      9、 Adequate multilingual support

      PON part:

      1、 Gigabit PON port for uplink and downlink, high bandwidth and low delay requirements.

      2、 1GE+1FE Ethernet electrical port is used to connect lower-level terminals to form an all-optical network. It is used to connect lower-level terminals for FTTR and FTTO.

      3、Provide 1 RJ11 telephone port, support SIP voice and fax.

      4、Support 2.4G WIFI.

      5、Support EPON/GPON dual-mode adaptive.

      6、 Supports packet filtering and protection against illegitimate packet attacks, suppressing unknown unicast, broadcast, and multicast messages .

      7、 Support PPPOE+ function for accurate user identification.

      8、Support multicast protocols such as IGMP Snooping/MLD.

      9、 PON system downstream uses AES-128 algorithm for data encryption.

      10、Support dual management mode based on DBA technology or priority to ensure the minimum specified bandwidth requirements of users.

       Product Specification



      Function Description

      Android system


      Quad ARM Cortex A55 1.2GHz


      Penda-core Mali-450 750MHz



      Remote controller


      General Android TV BOX RC unit

      BLE (optional)

      2.4G Bluetooth RC unit


      PON uplink port

      Working wavelength

      Transmit wavelength: 1310nm
      Receiving wavelength: 1490nm

      Output optical power

      -1+4 dBm

      Receiving sensitivity

      < -28 dBm


      SC/PC Connector

      UNI User interface

      1GE+1FE Ethernet electrical port

      Support 10/100/1000M adaptive

      Telephone interface

      1 RJ11 interface

      Support SIP

      WIFI interface

      2.4G band

      Support 802.1a/g/n

      USB interface


      Support USB2.0

      Network management mode

      Local management

      Support local WEB management

      Remote management

      Centralized management on OLT, support WEB, CLI

      Software upgrade

      Local upgrade

      Local download and upgrade via WEB

      Remote upgrade

      Remote software download and upgrade through OLT CLI

      Physical properties


      205x132x30 mm (Length * Width * Height)

      Power supply

      DC 12V==1.5A

      Power consumption

      < 12W

      Environmental parameters

      Operating temperature: -1045

      Storage temperature: -3060

      Relative humidity: 1090% (non-condensing)
