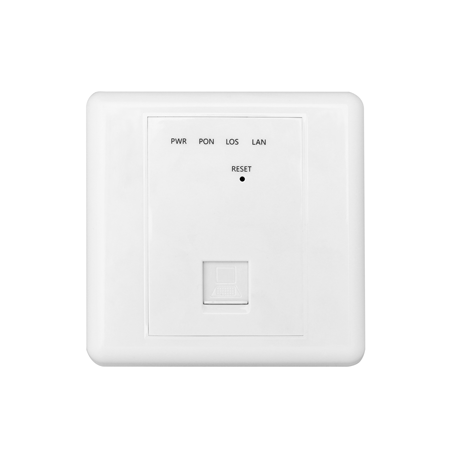

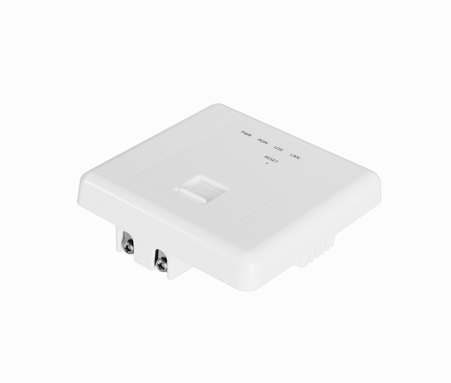

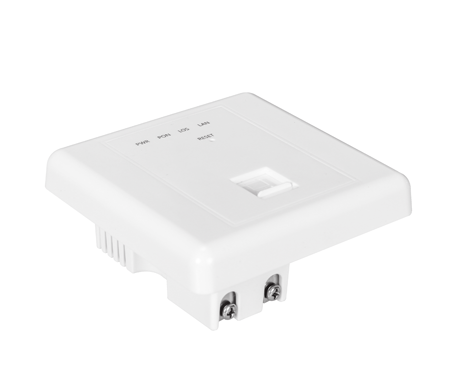

M100
Category: GPON ONU
CPU：RTL9603-VF-CG
DDR：1Gb
FLASH：1Gb
Ethernet Interface：10/100/1000M Base-T port (RJ45) *1, 10/100M Base-T port (RJ45) *1
POTS Interface：4-core phone port (RJ11) *1
Consult Now
DDR：1Gb
FLASH：1Gb
Ethernet Interface：10/100/1000M Base-T port (RJ45) *1, 10/100M Base-T port (RJ45) *1
POTS Interface：4-core phone port (RJ11) *1
Main Features
1、Gigabit PON port for uplink and downlink, high bandwidth and low delay requirements.
2、1x10/100/1000M Ethernet electrical port is used to connect lower-level terminals to form an all-optical network. It is used to connect lower-level terminals for FTTR and FTTO.
3、Support EPON/GPON dual-mode adaptive.
4、 Supports packet filtering and protection against illegitimate packet attacks, suppressing unknown unicast, broadcast, and multicast messages .
6、 Support PPPoE+ function for accurate user identification.
7、Support multicast protocols such as IGMP Snooping/MLD.
8、PON system downstream uses AES-128 algorithm for data encryption.
9、Support dual management mode based on DBA technology or priority to ensure the minimum specified bandwidth requirements of users.
Product Specification
|
Specification |
Features |
Function Description |
|
PON uplink port
|
Working wavelength |
Transmit wavelength: 1310nm |
|
Output optical power |
-1～+4dBm |
|
|
Receiving sensitivity |
<-28dBm |
|
|
Connector |
SC/PC Connector |
|
|
UNI User interface |
1 10/100/1000M Ethernet electrical port |
Support 10/100/1000M adaptive |
|
Network management mode |
Local management |
Support local WEB management |
|
Remote management |
Centralized management on OLT, support WEB, CLI |
|
|
Software upgrade |
Local upgrade |
Local download and upgrade via WEB |
|
Remote upgrade |
Remote software download and upgrade through the OLT CLI |
|
|
Physical properties |
Size |
86×86×32 mm (length * width * height) |
|
Power supply |
AC 200V |
|
|
Power consumption |
〈6W |
|
|
Environmental parameters |
Operating temperature: -10～45℃ Storage temperature: -30～60℃ Relative humidity: 10～90% (non condensing) |
|
|
Weight |
112g |
